MIL-STD-2088B
w/CHANGE 1

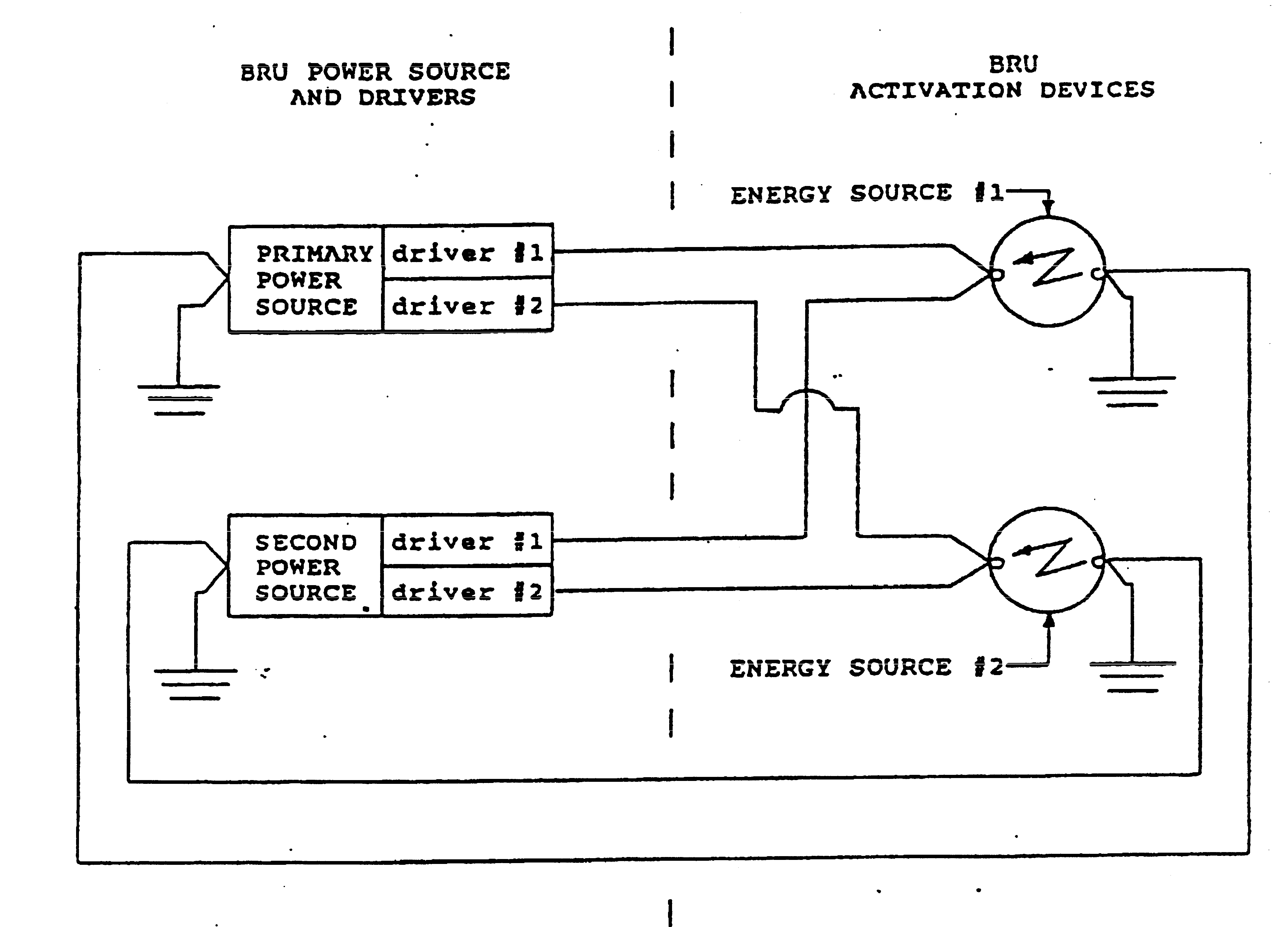

FIGURE 5. Wiring schematic to achieve primary and secondary release.
5.1.7.2.2 Cartridge firing pin. The cartridge firing pin configuration and characteristics shall be as follows:
a. Shank diameter of 0.092 ±0.002 inch.
b. Point of 90° included angle with 0.005 inch diameter maximum flat. c. Hardness, Rockwell 59 to 62 HRC.
5.1.7.2.3 Cartridge breech. The diameter of the cartridge breech (or cartridge holder if used) shall be a straight bore of 1.081 + 0.003 - 0.000 inches over its full length. Any taper existing within these limits shall be uniform over the full length of the breech or cartridge holder, with the maximum diameter occurring at the end adjacent to the cartridge flange. The surface finish on the cartridge breech shall be a minimum of 32 microinches, root mean square (rms). Cartridge breech design shall provide cartridge firing pressure in the range of 3,000 to 25,000
psi, with confinement of the cartridge main charge propellant for reproducible performance. The breech or cartridge holder shall be designed to permit "end burst" of the cartridge such that all generated hot gases exit the cartridge through its closure disc and not the aluminum cartridge case. Means shall be provided at the end of the ejector piston cycle to safely vent the remaining gas pressure. To comply with a 0.008 man-hour (30-man second) cartridge removal and
31
